Plastic Woven Bag Granulating Recycling Machine Line

  • Model: PTC series
  • Raw material: Plastic PP Woven Bag, Non-woven fabric
  • Usage: Machine to recycle Plastic PP woven bag, non-woven fabric into PP pellet
  • Main machine: Single screw extruder with compactor/agglomerator, Granulator
  • Granulator Screw: Single screw

Plastic PP Woven Bag Granulating Recycling Machine Line

Ⅰ. Plastic PP woven bag granulating recycling machine line features:

  1. Plastic PP woven bag granulation recycling machine line with high output and excellent granulating ability (200kg/hour to 1000kg/hour)
  2. Plastic PP woven bag granulation recycling machine line is widely used to recycle waste PP woven bag, non-woven fabric into PP pellet
  3. Highly automatically: Only 2 persons for one production line
  4. High efficiency: Compared with the 1st generation design, POLYTEC 2nd generation PP woven bag granulating recycling machine line increased by 20% in output
  5. Low power consumption: The power consumption reduced by 15% compared with the 1st generation design

6.You can choose single stage (one extruder with one screen changer) or double stages (mother-baby two extruders with two screen changers) based on raw material clean degree & real production needs

7.You can choose water-ring cutting or cold-strand noodle cutting way to match different raw material

How to choose proper machine you want?

  • Please tell us details on what you want.
  • What’s your raw material?
  • What’s the final products you want to produce?
  • What machine capacity you want it perform?

How to control the quality?

  • We have technical, engineering teams to design the sample machine before entering into market
  • Production, QC teams ensure the machine manufacturing quality
  • We will running every machine after finished before shipment
  • Customized machine design based on customer’s raw material condition

Ⅱ. Plastic woven bag granulating recycling machine line detail list:

No.

Name

Qty.

1

Belt conveyor & metal detector

1set

2

Compactor / Agglomerator

1set

3

Single screw extruder(one stage or double stages)

1set

4

Hydraulic screen changer

1set

5

Plastic pelletizing system(water-ring cutting system)

1set

6

Dewatering machine

1set

7

Air transmission and silo storage

1set

Cold-strand granulating way also available with rich experience, based on raw material condition.

Ⅲ. Detailed description for plastic PP woven bag granulating recycling machine line:

PP woven bag granulating recycling machine line (water-ring granulating way):

Machine list

Belt conveyor

1) Belt material: PVC

2) Speed adjusted by inverter, synch running with agglomerator

3) Height adjustable

4) Equipped with wheels

5) Equipped with tightening device

6) Metal detector for option

Agglomerator

  • Double-layer cutting- disk, patent design, more efficient in feeding.
  • Special arrangement of blade & feeding mouth, output is increased by 10%-20%
  • Hydraulic Opening and Hydraulic Lifting, safe and easy maintenance
  • Our method of cooling wall of agglomerator: by air and water cooling system, No need to add water into the agglomerator.

  • Double-layer cutting-disk

Output is increased by 10%-20%

Double-layer cutting-disk:

Double-layer cutting-disk design, the upper cutting-disk is preheating, the lower cutting-disk increases the compression space, increases the friction coefficient, the temperature rises fast, the feed is stable, and the output is increased by 10%-20%, especially for raw materials with low bulk density.

Single screw extruder (First stage)

1st extrusion, 1st filtering



  • Gearbox: high quality Chinese brands or based on customer’s request
  • Frequency inverter: Siemens brand
  • Screw & barrel: 38CrMoAl, Nitride with thickness 0.4 ~ 0.7 mm, Polish
  • Heater: Ceramics + stainless steel cover
  • Vacuum pump exhaust, double exhaust
  • Self-protective system:

Over current protective of motor

Over pressure protective of screw

Over temperature protective of motor

Low & over temperature control of extruder

  • Screw & barrel are specially designed by our engineer according to decades years’ experience for good plasticizing effect & capacity.

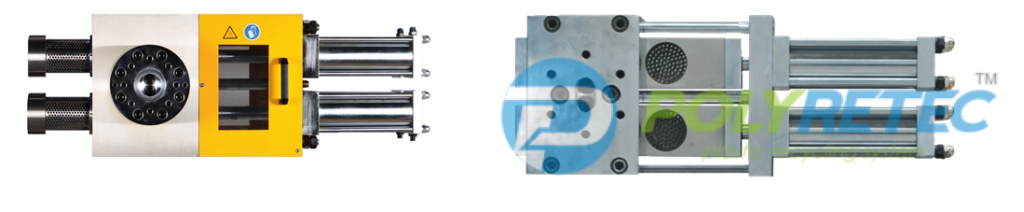

Screen changer

Multiple choices for different materials.

  • Material for mold body: 40Cr
  • Nitriding and polishing of runner surface
  • Pressure and temperature control
  • When pressure is nearly reach alarm value, hydraulically change to another station.
  • High filtering effect, realizing non-stop screen changing
  • No leakage, automatic gap compensation

Single screw extruder (Second stage)

2nd extrusion, 2nd filtering, to achieve better granule quality



Water-ring cutting system

Quantity of Blade: 2-4, SKD-11

Speed controlled by inverter

Material of die head: 38CrMoAlA

Material of water ring cover: Stainless steel 304

Horizontal design with linear guide, easy operation and maintenance.

Pneumatic adjustment, to make cutting blades and die-face soft touch, in order to achieve 100% contact between the blade and die head, to avoid die face damaged.

Dewatering Vibrator

1.Linear vibrating screen uses vibrating motor as the vibration source, so that the pellets are thrown up on the screen, and move linearly forward. Several sizes of screens are equipped for pellets discharging from their respective outlets.

2.Linear screen fully enclosed structure, no dust and overflow, automatic discharge, etc., more suitable for 24-hour assembly line operation.

3.Linear screen by low energy consumption, high output, simple structure and easy maintenance.

4.Combination of filtration and dehydration, high efficiency and power saving.

Silo

Part of contacting material: stainless steel 304

Control cabinet

Independent operation panel for

easy operation, English version

With cooling fan inside

Temperature controller: Omron

Frequency inverter: Siemens

Self protective system:

Over current protective of motor

Over temperature protective of motor

Over pressure protective of screw

Low & over temperature control of extruder

Plastic woven bag granulating recycling machine line detail list:

No.

Name

Qty.

1

Belt conveyor & metal detector

1set

2

Compactor / Agglomerator

1set

3

Single screw extruder(one stage or double stages)

1set

4

Hydraulic screen changer

1set

5

Plastic pelletizing system(water-ring cutting system)

1set

6

Dewatering machine

1set

7

Air transmission and silo storage

1set



Sales service

  1. Pre-sale: we give customer the plastic recycling machinery detail technician offer, sign the sales contract etc
  2. In-sale: we supply the plastic film bag granulating machine (together with crushing washing machine if needed as a recycling system) layout, installation, technical support. Running the plastic film bag granulating recycling machine line before delivery.

After customer’s acceptance,we arrange the related machine delivery rapidly, provide detailed packing list and related documents for customers' customs clearance.

  1. After sales: we arrange our experienced engineer to install the machinery and training the workers for customer in customer factory.
  2. We have 24 hours team to support the after-sales service
  3. We have free spare parts with the machine when we deliver the machine.

We supply long-term spare parts for every customer with cost price

  1. We always update the new technology to every customer
  2. FAQ for our plastic recycling machine
  3. How can I get fast response of products?

You can send mails for our products details, and also we’re available in fast talking tool such as wechat, whatsapp, viber, linkedIn, facebook, etc.

  1. How soon can I get a quotation?

For most projects, once we know the necessary information of the recycled raw material , we can provide you with a quotation within 24 hours.

  1. Can I have a customized design?

We design and construct each project according to customer's needs.

Customized is based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V50Hz....)

  1. Is there a minimum order requirement?

Caused by the daily production capacity is very huge and shipping freight, our minimum order quantity is 1set, but we can help to do several colors for choice. It is recommended for you to order a 20”GP or 40”HC to reduce the unit price and shipping cost.

  1. What are your office hours?

You can reach us between the hours of 8:00 A. M. and 5:00 P. M. GTM+8, Monday to Saturday, except Chinese national holidays.

  1. Do you have a price catalog?

We are a professional plastic recycling machine manufacturer. We have different models even for same material type recycling machine, suggest to ask price/quotation based on real needs(e.g. capacity or your rough budget).

7.How do I know I can trust ordering from you?

We have been in business since 2003 and are committed to bringing our customers 100% satisfaction. You can visit them if the customer allows the visit.
